Vascular Tourniquet Kit
Deep vascular occlusion system using loops (not included).
In order to comply with the existing EU regulations regarding product quality control, we kindly ask our customers who have used the above mentioned product to leave a feedback below. Your personal data will be processed according to our Privacy Policy that we assume you already have given your consent to. Any comment you leave below will not be visible publicly and will only be used for our internal quality management procedures. Thank you for your cooperation!

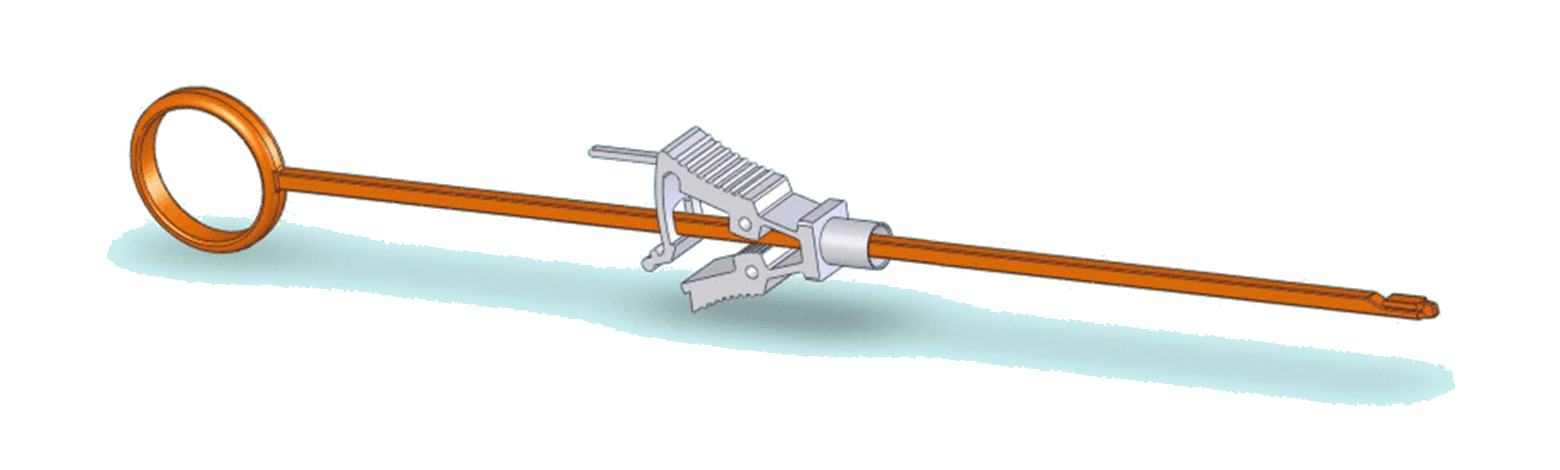

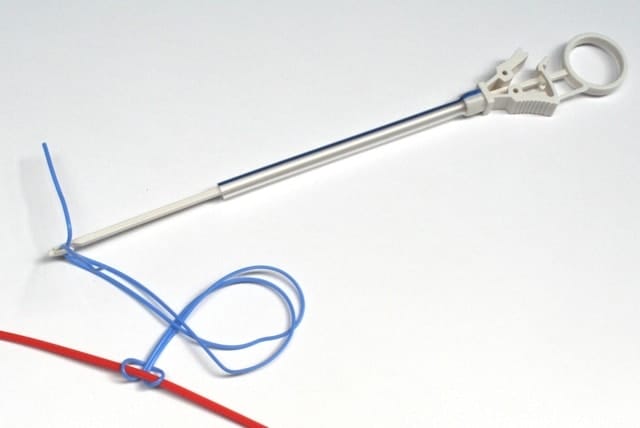

Vascular Tourniquet with plastic stylet
Use
The device permits rapid, easy and safe occlusion of blood vessels. After positioning the loop with a double passage around the blood vessel (the loop is not included with the device and must be chosen according to the condition that the case requires), the two ends will be anchored at the stylet’s terminal.
Once the stylet has been pulled to the outside of the occlusion tube, it is possible to place the loop in traction so to obtain the occlusion pressure desired. At the conclusion of this phase it is sufficient to close the proximal clamp to fix the loop in place.
Using this device, the surgeon can maintain complete control on the blood vessel, which also permits the precise administering of heparin locally. The quick release clamp allows rapid control of blood flow.
Various models are available with occlusion tubes in silicone or PVC, with coloured radiopaque line to distinguish between different blood vessels (various arteries and/or veins).
All occlusion tubes have non traumatic rounded tips.
Specifications
- Clamp and stylet made of polyamide
- Occlusion tube made of PVC or silicone, int. diameter 4mm, ext. diameter 6mm.
- Usable stylet length: 160mm.
- Usable tube length: 5cm., 10cm., 15cm.
- Double Peel packaging, coated medical paper PET-PE
- Latex and phthalate free
- Sterilized by gamma rays

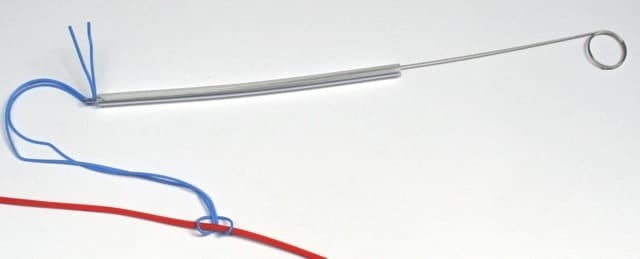

Vascular Tourniquet with stainless steel stylet
Use
The device permits rapid, easy and safe occlusion of blood vessels. After positioning the loop with a double passage around the blood vessel (the loop is not included with the device and must be chosen according to the condition that the case requires), the two ends will be anchored at the stylet’s terminal.
Once the stylet has been pulled to the outside of the occlusion tube, it is possible to place the loop in traction so to ob- tain the occlusion pressure desired. At the conclusion of this phase it is sufficient to position a surgical clamp on the tube body to fix the loop in place.
Using this device, the surgeon can maintain complete control on the blood vessel, which also permits the precise admi- nistering of heparin locally.
The kit includes a stylet of stainless steel and 5 occlusion tubes made of PVC with a radiopaque line of different colours to distinguish between different blood vessels (various arteries and/or veins).
All occlusion tubes have non traumatic rounded tips.
Specifications
- Stylet made of stainless steel AISI 316
- Occlusion tube made of PVC, int. diameter 3mm., external diameter 5mm.
- Usable stylet length: 23cm.
- Usable tube length: 18cm.
- Double Peel packaging, coated medical paper PET-PE
- Latex and phthalate free
- Sterilized by gamma rays
